Name: JTP-PVC-200 Photoluminescent PVC Sheet
Brand: Hangzhou Junting Luminescence Technology Co.,Ltd.

Specifications of JTP-PVC-200 Photoluminescent PVC Sheet

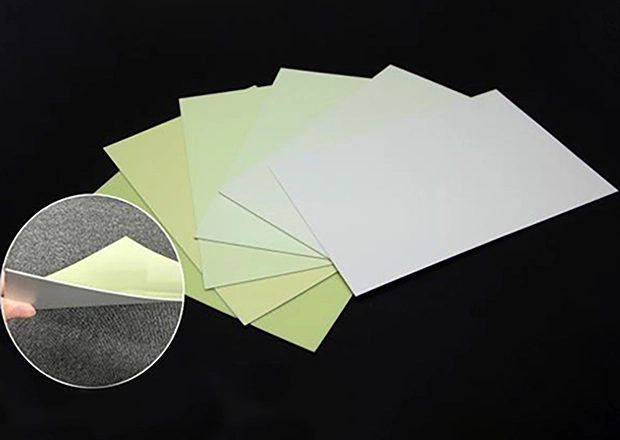

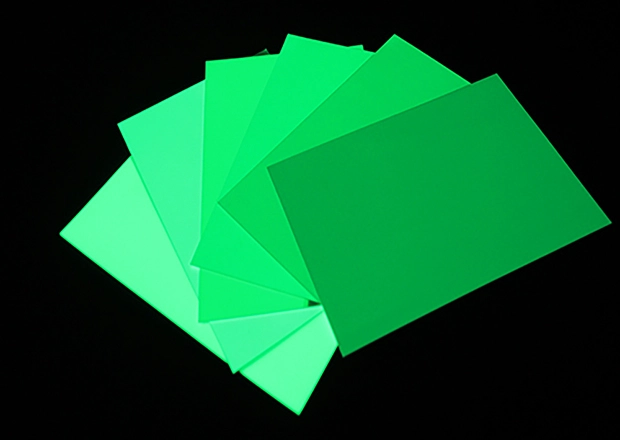

Photoluminescent Rigid Sheet
Material	Model No.	Maximum size	Luminance （mcd/m2）		Daytime Appearance	Night Appearance
Material	Model No.	Maximum size	10min	60min	Daytime Appearance	Night Appearance
Aluminium	JTP-AL-200	1000*1200mm	250	35
	JTP-AL-300	1000*1200mm	350	40
	JTP-AL-500	1000*1200mm	550	75
	JTP-AL-700	1000*1200mm	750	105
	JTP-AL-900	1000*1200mm	950	115
PVC	JTP-PVC-100	1000*1200mm	150	15
	JTP-PVC-150	1000*1200mm	200	25
	JTP-PVC-200	1000*1200mm	250	35
	JTP-PVC-300	1000*1200mm	350	40
	JTP-PVC-500	1000*1200mm	550	75
	JTP-PVC-700	1000*1200mm	750	105

Remarks:

1. Luminance test conditions of our photoluminescent plastic sheet: D65 standard light source at 1000LX luminous flux density for 10mins excitation.

2. Thickness & special dimension can be customized, the maximum size is 1000*1200mm.

3. Emitting color and luminance can be customized.
